SD7528

TRANSITION-MODE PFC CONTROLLER

Description Main feature Product specification classification Internal block diagram Technical documentation Relevant package outline drawing

SD7528 is a high performance transition-mode power factor correction (PFC) controller.

SD7528 includes a highly linear multiplier, able to reduce AC input current distortion.

The output voltage is controlled by means of a voltage-mode error amplifier and a precise internal voltage reference.

The device features very low consumption with current maximum 15μA before start-up and less than 5.5mA during working.

SD7528 includes a disable function suitable for IC remote ON/OFF.

An effective two-step OVP enables to safely handle over-voltage either occurring at start-up or resulting from load disconnection.

Main feature

High-performance linear multiplier
Zero current detector
Built-in restart timer
Integrate digital LEB
Precision adjustable overvoltage protection
Disable function
Low start-up current (15μA)
Low quiescent operating current (3.0mA)
Available in DIP-8 or SOP-8 package.

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type
SD7528	DIP-8-300-2.54	SD7528	Halogen free	Tube
SD7528S	SOP-8-225-1.27	SD7528S	Halogen free	Tube
SD7528STR	SOP-8-225-1.27	SD7528S	Halogen free	Tape&Reel

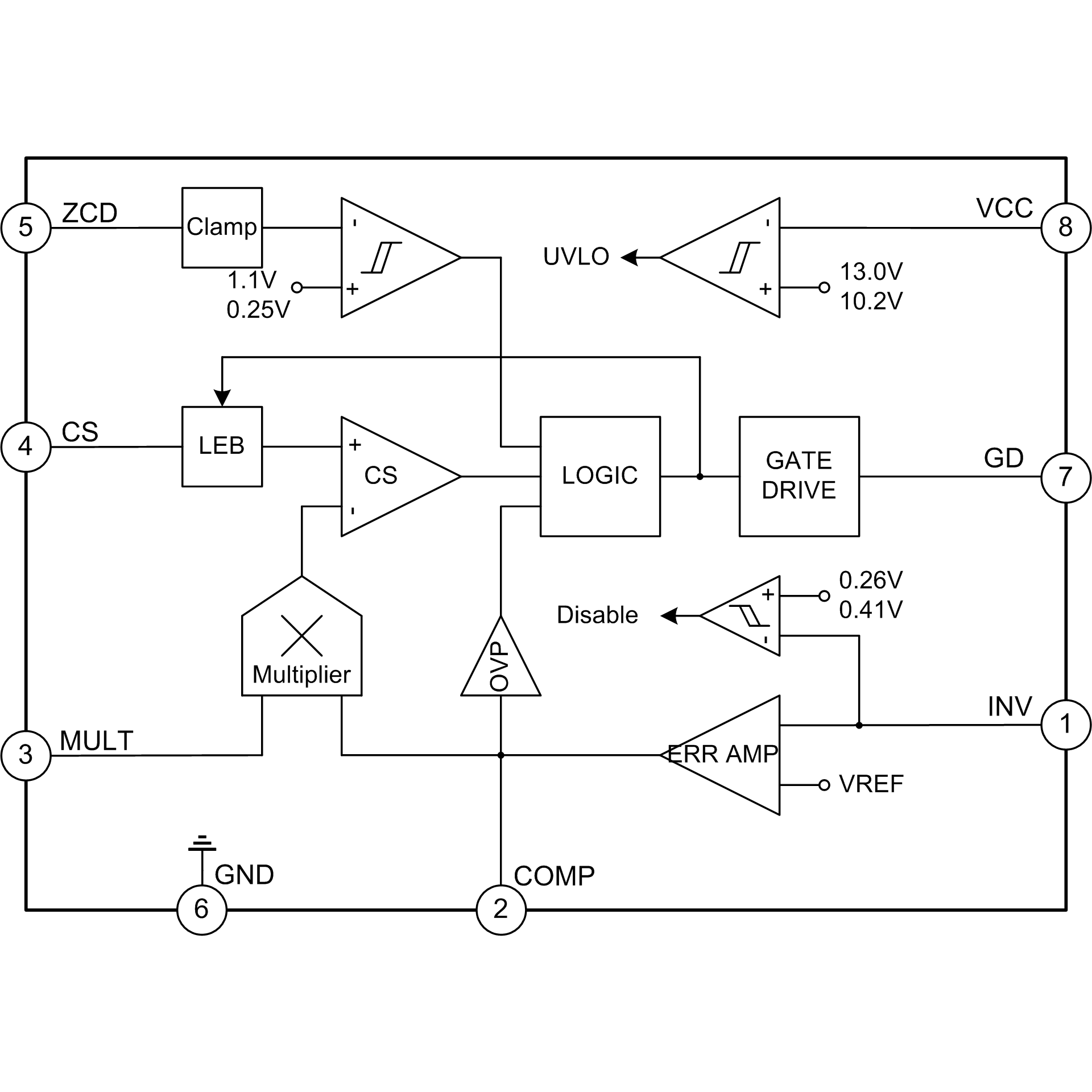

Block Diagram


Documents

title	Types of	Size (KB)	date	Download the latest English version
SD7528		0	2020-12-09	SD7528 Brief Datasheet

Packages

SOP-8-225-1.27

DIP-8-300-2.54
